ModelPlan 131

Ralph Rigg's

Terex 100 ton Mine Truck


 A Set 10 Model

The 91 tonne (100 US ton) mine truck is the biggest that Terex make in the United Kingdom.  This size is big enough for the comparatively small open-cast mines found in the UK.

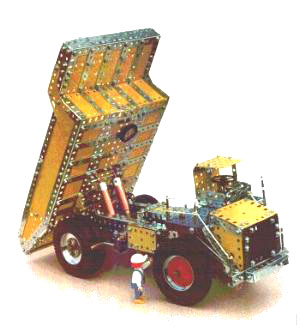

Ralph Rigg has built his model from a 1990's 10 set but has utilised copper tubes to represent the tipping rams.

Instructions cover the Chassis, Gearbox, Differential and Rear Suspension, Bonnet, Cab, Wheels, Steering Gear and Tipping Body.

The thirteen colour photographs of the model are augmented by several of the prototype.
